06.08.2015 UPDATE,


c46 is 680uF, 35 volt LOW ESR
c59 and 58 is 100 nf

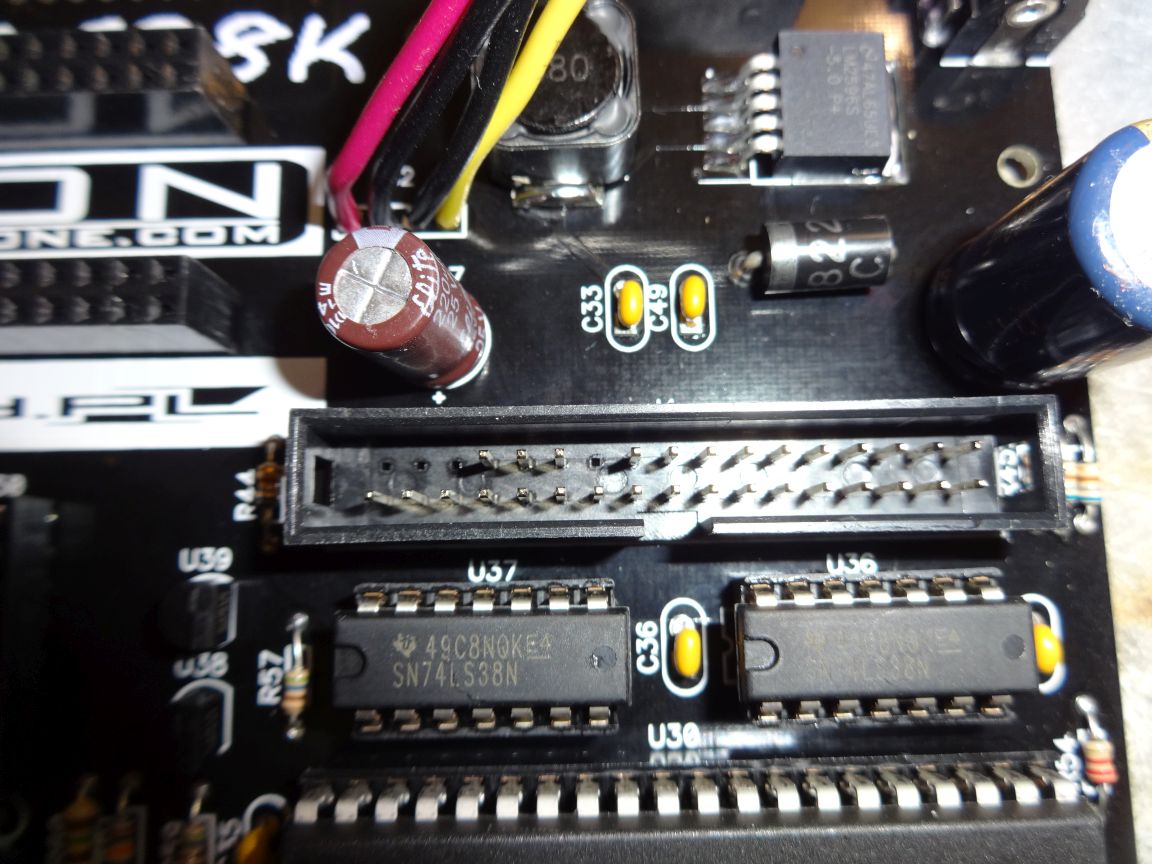

Floppy connector, remove pins like on photo, 1,2,3,7 (on this pins is 5 volt power)





U28 is Attiny 2313A, PS2 keyboard controller ,hex file and topic about it is here http://www.cpcwiki.eu/forum/amstrad-cpc-hardware/is-there-any-recent-project-to-connect-a-pc-%28ps2%29-keyboard-to-the-cpc/new/?topicseen#new
Or contact with me and i post programmed Attiny to You.
Change resistor R64 to 150 R

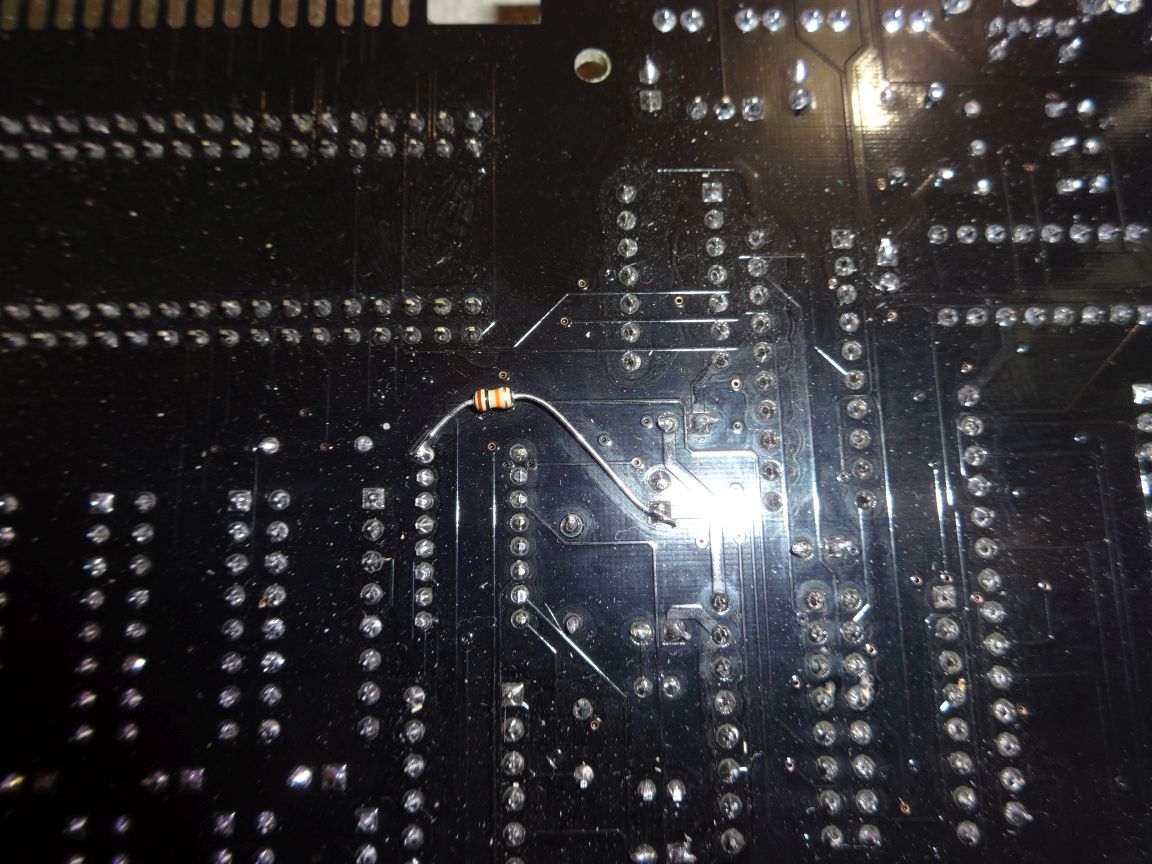

change resistors R34 and R40 to 20 Kohm Add 10k resistor between U5 pin 9 (or R30 like on photo)and +5volt

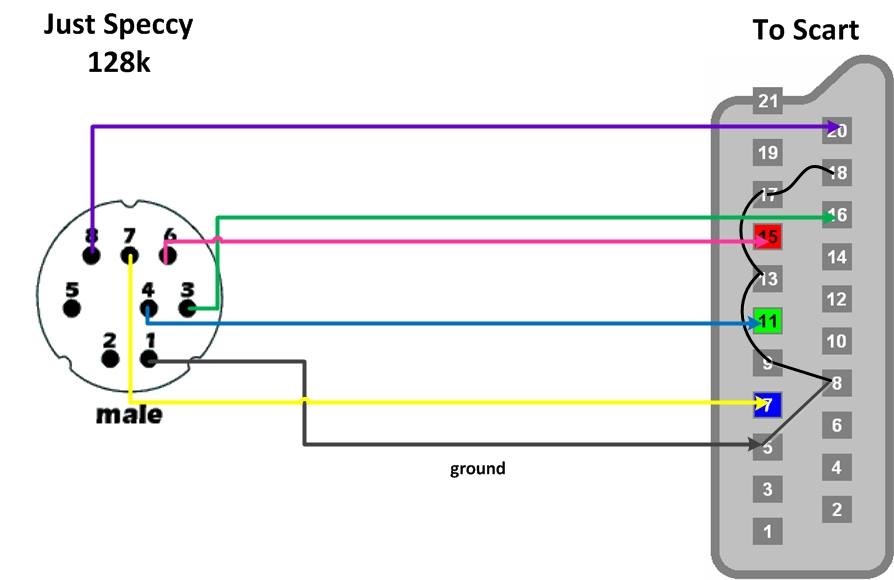

Video pinout Minidin 8 to scart plug


1 GND to pin 5,8,9,13,17,18
2 N/c
3. RGB switch to pin 16 scart
4. G to pin 11 scart
5. N/c
6. R to pin 15 scart
7. B to pin 7 scart
8. SYNC to pin 20 scart


CABLE PHOTO CABLE PHOTOS

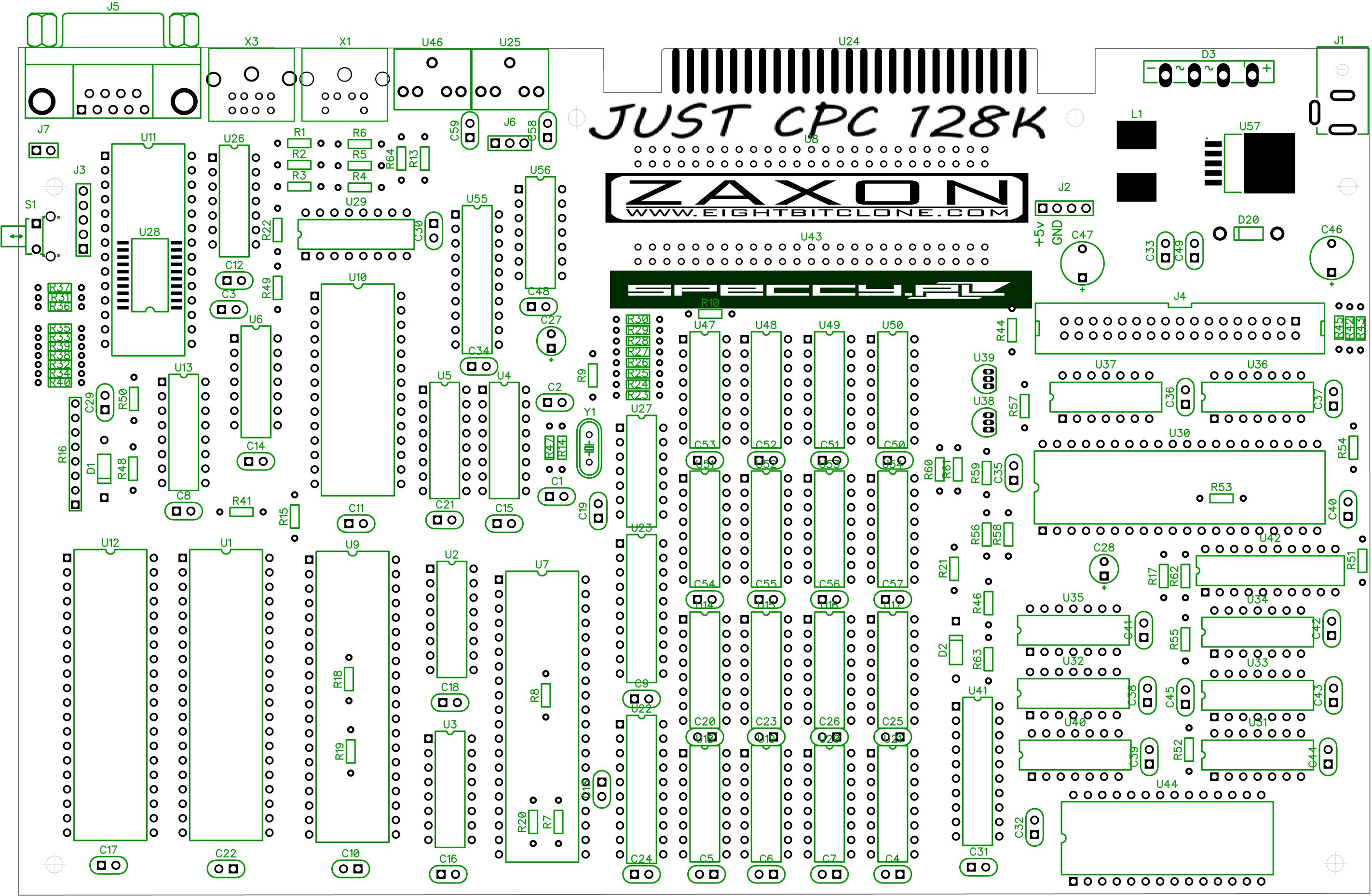

Just CPC 128k BOM
Floppy section:
u30 D765AC
u31 74ls27
u32 74ls08
u33 74ls132
u34 74ls136
u35 74ls74
u36 74ls38
u37 74ls38
u38,u39 2sc1815 transistors
u40 74ls32
u41 FDC9229BT
u42 74ls240
u44 at27c256


d2 1n4148
r17 680r
r42 680r
r43 680r
r44 680r
r45 680r
r46 680r
r51 1k
r52 1k
r53 1k
r54 2k2
r55 680r
r56 1k
r57,560r
r58 2k2
r59 560R
r60 180r
r61 10K
r62 680r
r63 680r
c28 220 Uf
c31,32,35,36,37,38,39,40,41,42,43,44 100nF
c45 47pF
DDC 2x17 floppy socket
-----------------------------------------------------------------------------------------
Power supply section:
U57 LM2596 5.0v
D20 1n5822
L1 coil 68 UH, for example http://www.tme.eu/pl/details/de1207-68/dlawiki-smd-mocy/ferrocore/#t0a513eb7bbabbe57c73e2222fc2cf7ea
c47 220 Uf/16V low esr
c46 680Uf / 35V lov esr
power socket 5,5/2.1
c33,c49 100 nf
D3 GBU4S bridge
-------------------------------------------------------------------
Mainboard section
(r9 and r10 680R, optional,do not fit)
r21 2k2
r23,24,25,26,27,28,29,30 47R
r47 ,r14 10M
r20 1K
r7 82R
r8 4k7
r18 2k2
19 2k2
r 15 56R
r41 10k
r48 3M3
r50 1M
r22 2k2
r49 2k2
r1,r2,r3 270R
r4,r5,r6 680r
r13,r64 220R
r37 10k
r31 1k
r36 10k
r35 10k
r33 1k
r39 10k
r38 10k
r32 1k
r34 20k
r 40 20k
r16 rpack 7x2k2
U14,u15,u16,u17,u18,u19,u20,u21 km4164b-15 u47,u48,u49,u50,u51,u52,u53,u54 km4164b-15
u2,u3,u4,u5 74ls153
u22 74ls244
u23 74ls373
u27 74hcu04
u56 74ls08
u55 gal16v8
u29 74hc138
u26 74ls32
u6 74ls132
u13 74ls145
u11 ay3-8912
u12 d8255
u1 um6845r
u9 z80
u7 amstrad 40010
u10 Amstrad rom
quartz 16mhz
c1,c2 15pf
c27 220 Uf
Other Cap:
36 cap 100nF
d1 4148

Sockets:
1x dsub 9
1x minidin 8 http://fr.farnell.com/lumberg/tm-0508-a-8/fiche-fem-mini-din-mtge-chassis/dp/1200114
1x minidin 6
2x jack http://www.tme.eu/pl/details/fc68133/zlacza-jack/cliff/jy039-5p-fc68133/#tdac3ca872abe30070a913cd90258e7ab
2x expansion card slot : http://www.tme.eu/pl/details/zl262-50dg/listwy-i-gniazda-kolkowe/ninigi/
RESET tactile switch
