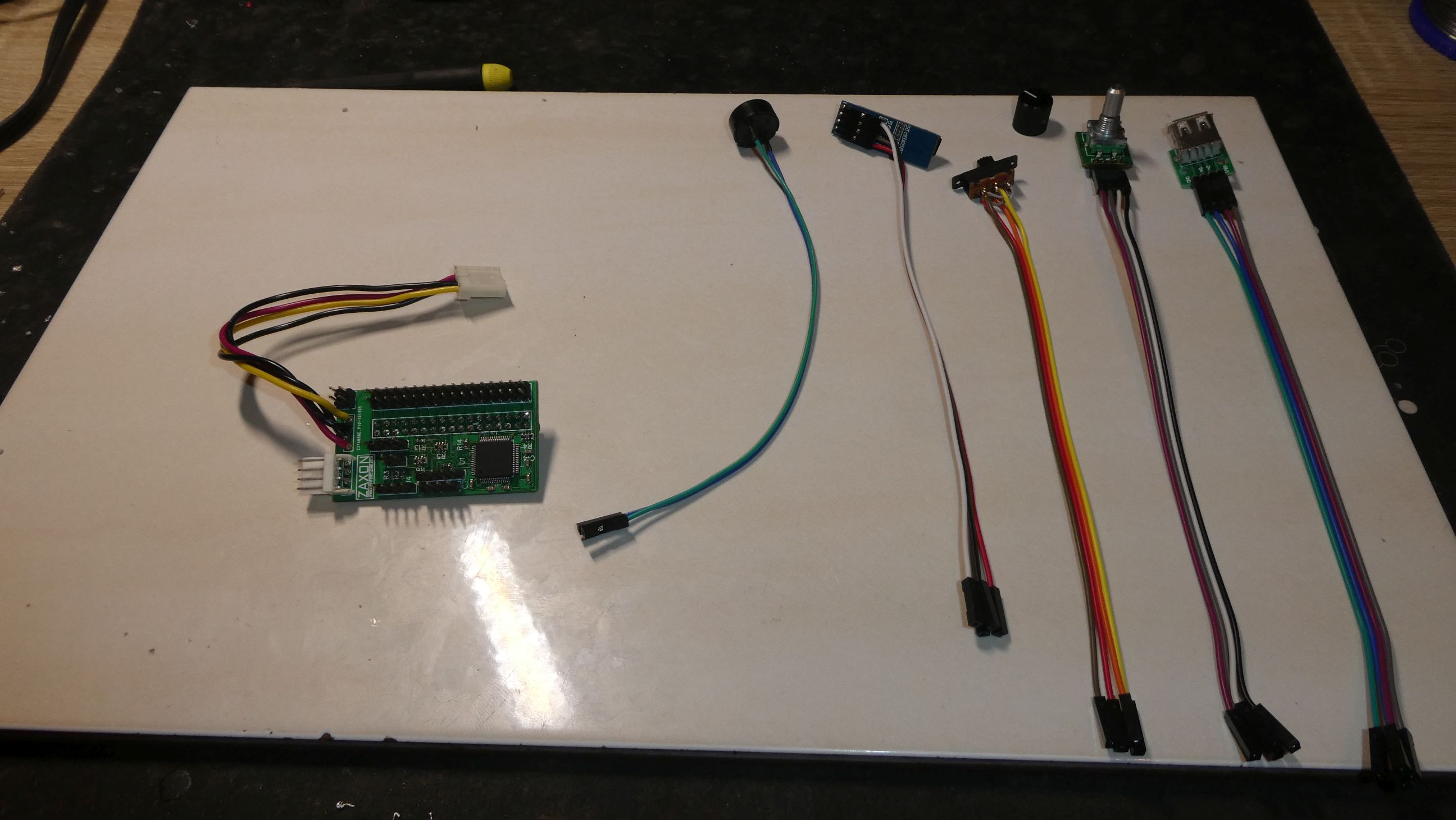

Check set

3x 4 cable
1x OLED display
1x switch
1x encoder
1x knob
1x USB
1x buzzer
1x microgotek board
1 (2553 kB)

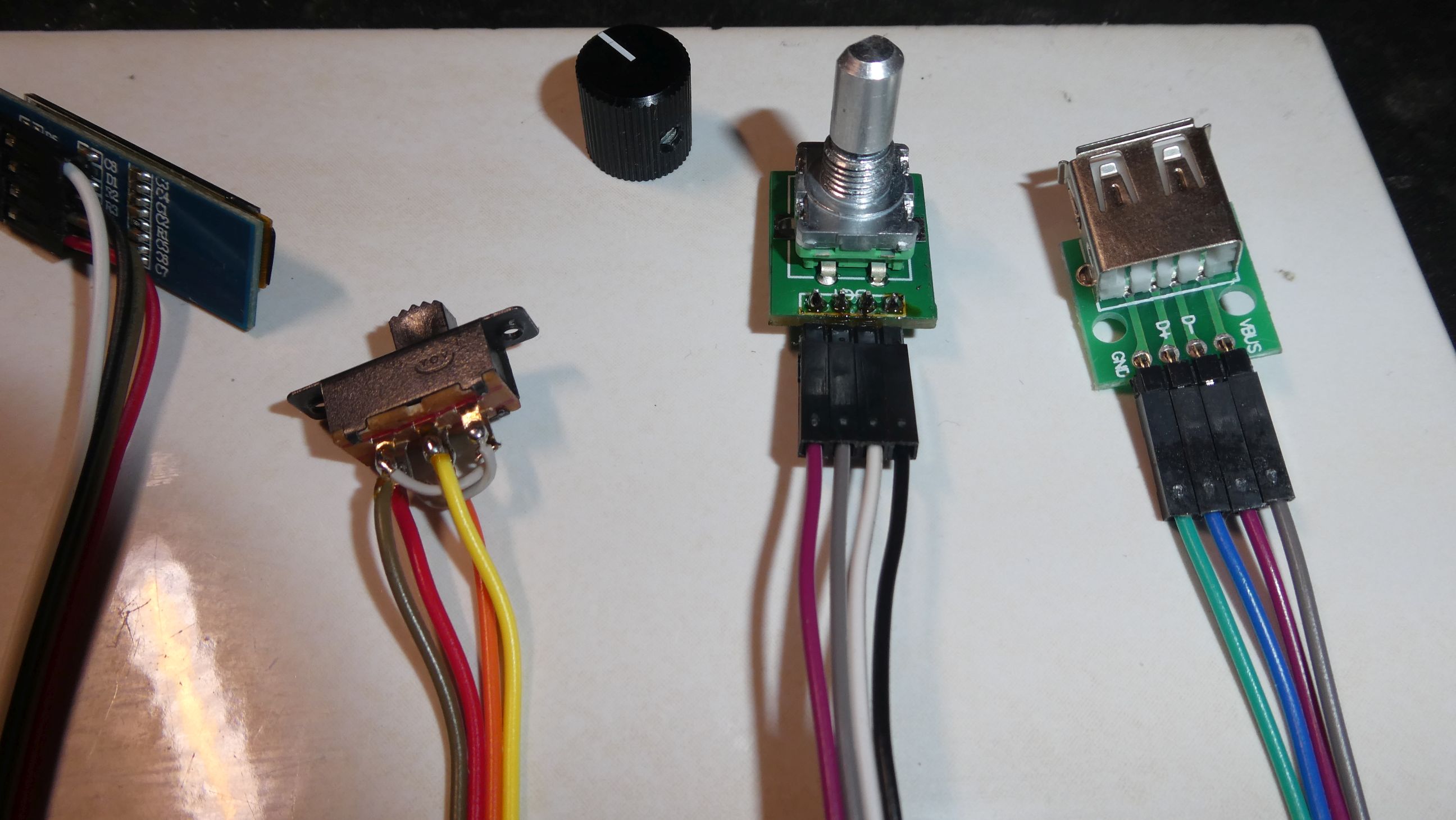

Next step, connect all, focus on cable colors, exactly as on pictures

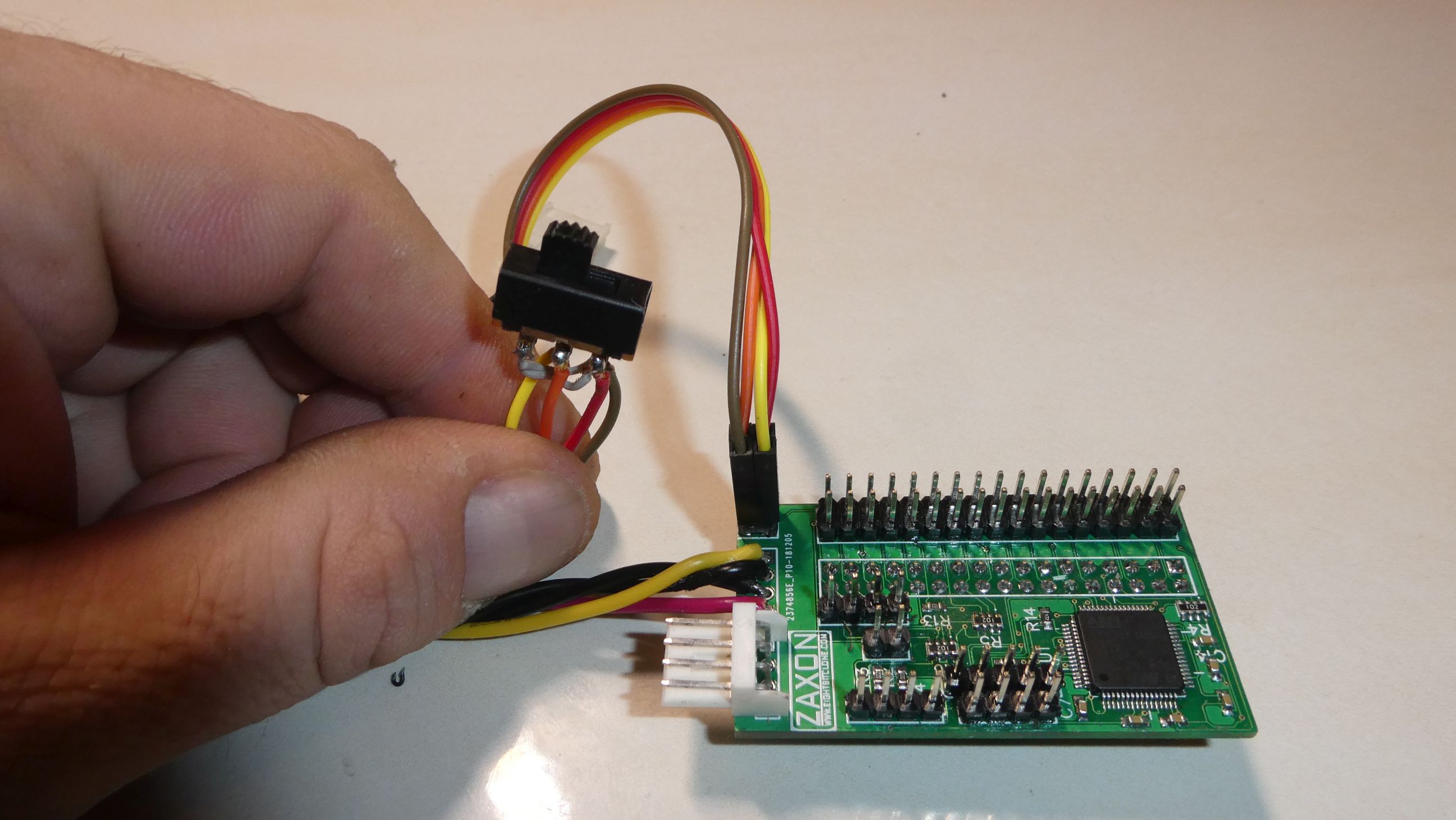

Switch and Buzzer is soldered so no worry about it

1 (2553 kB)

1 (2553 kB)

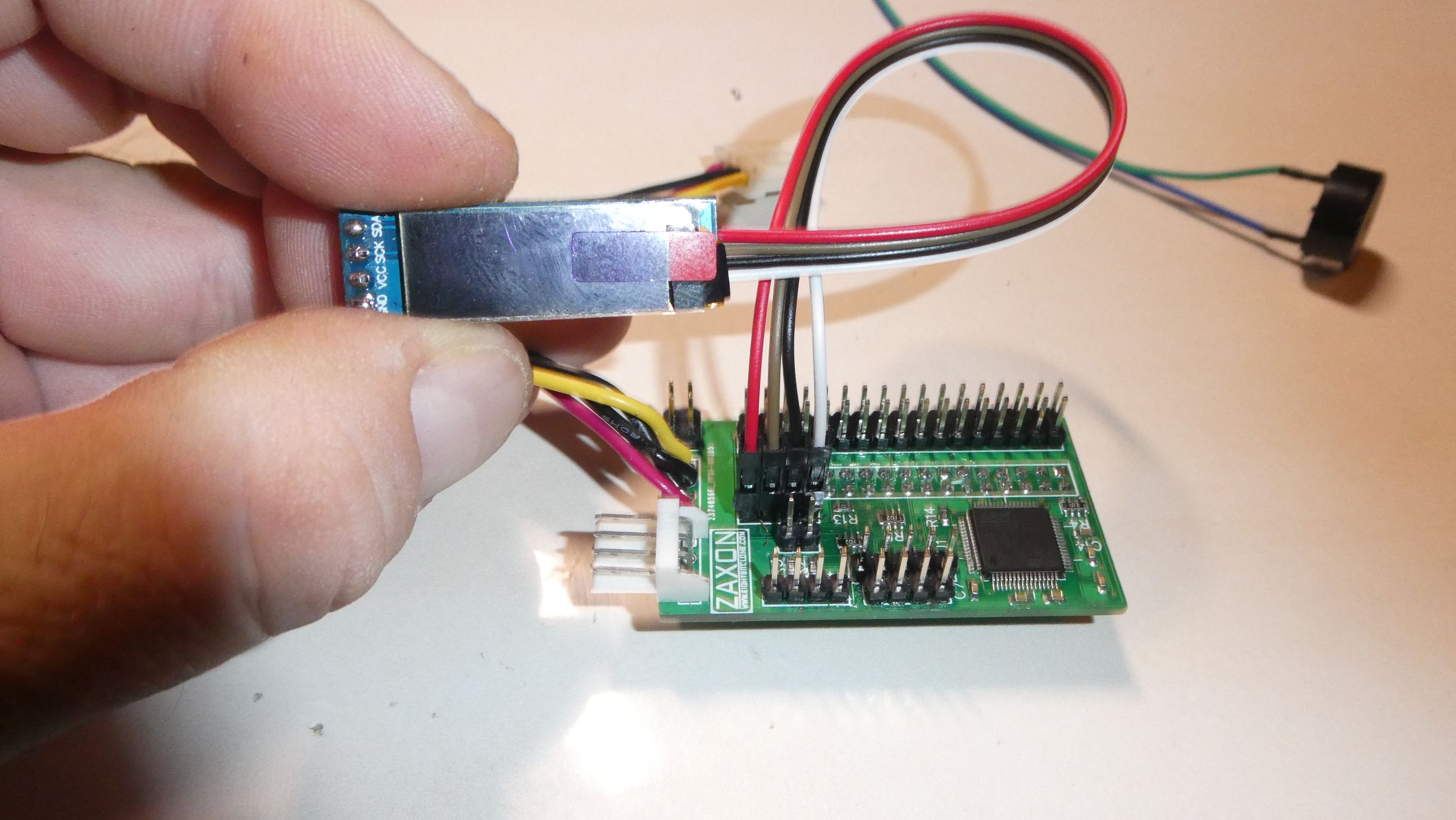

Display:

1 (2553 kB)

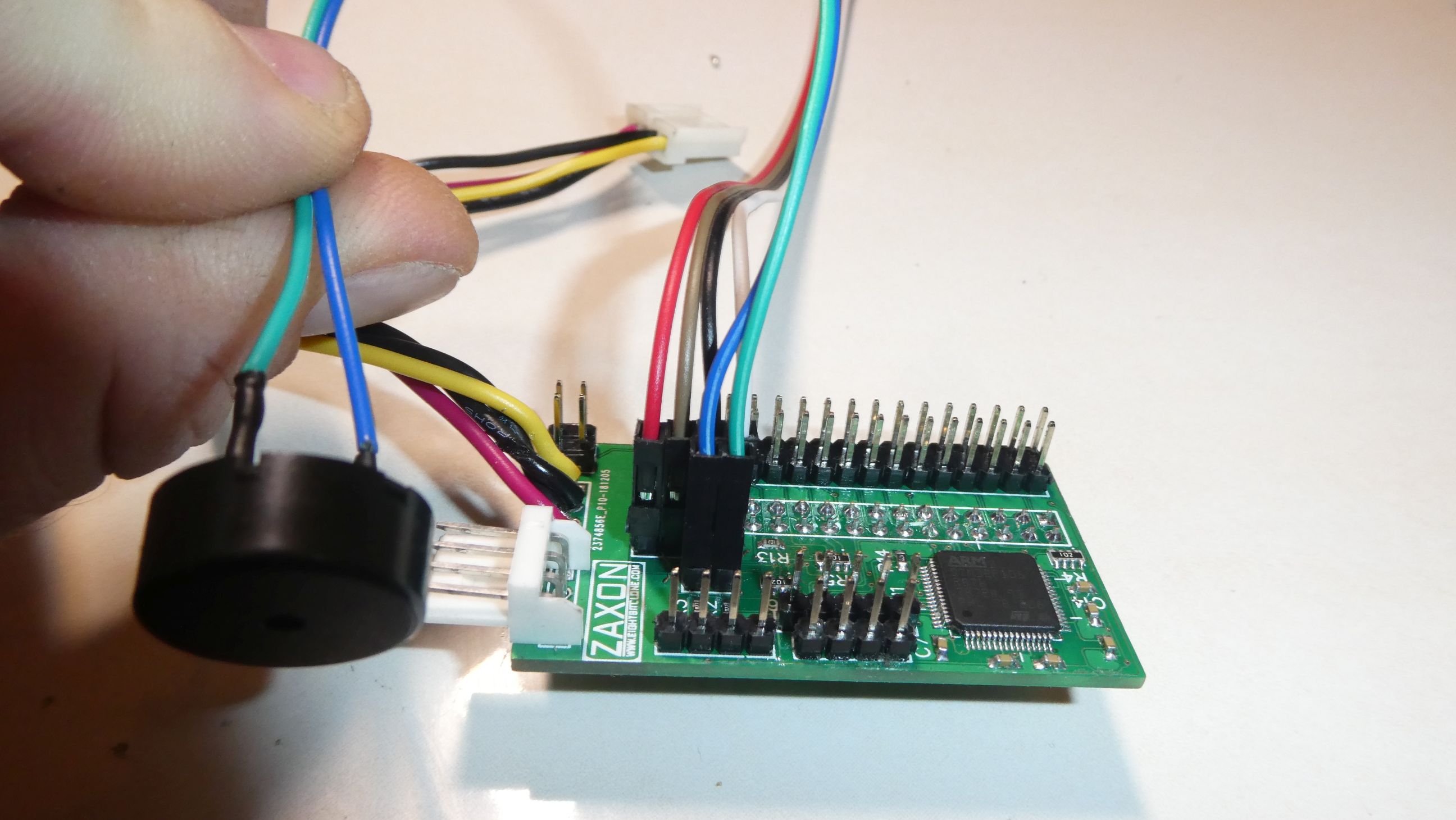

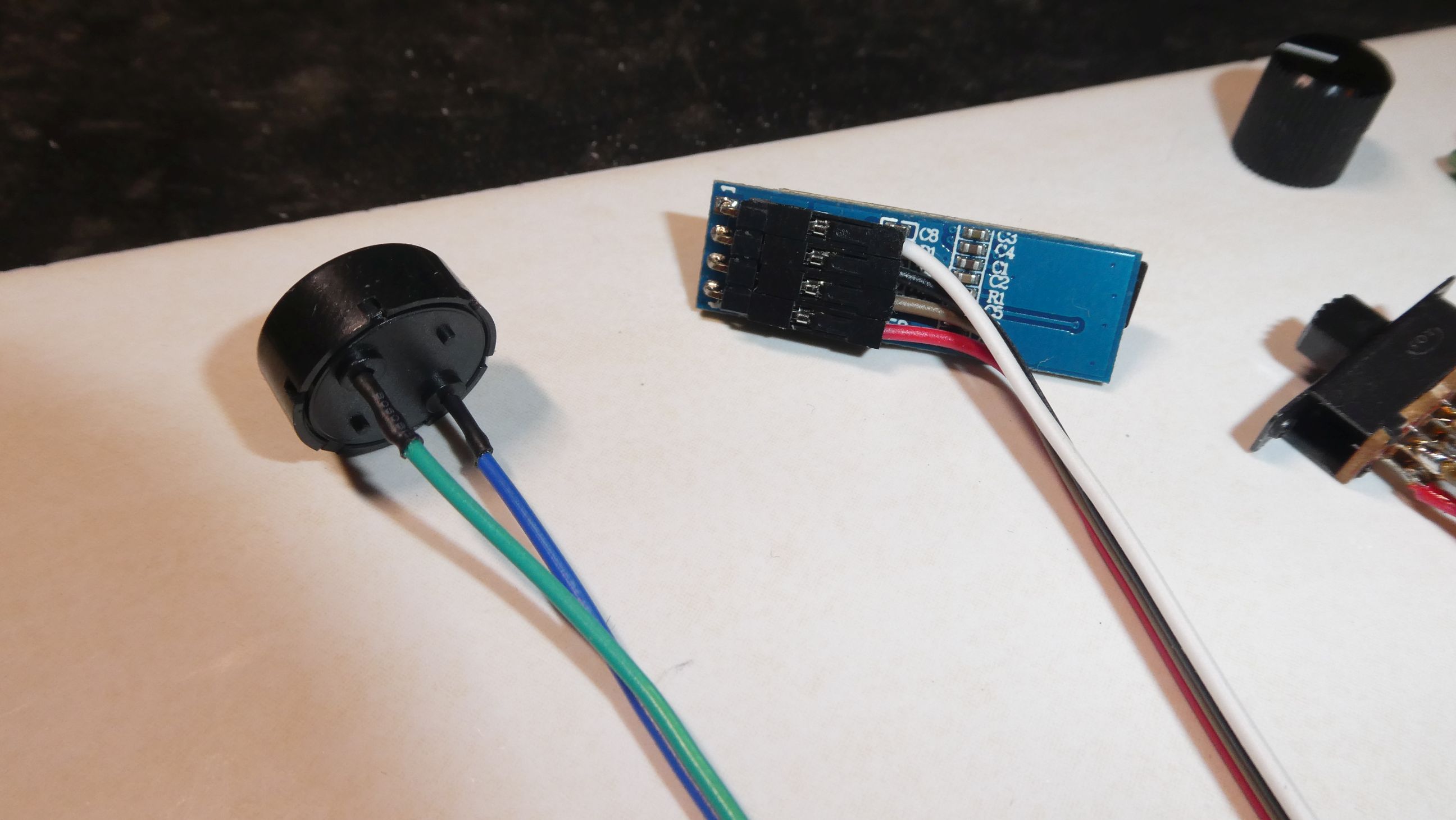

Buzzer

1 (2553 kB)

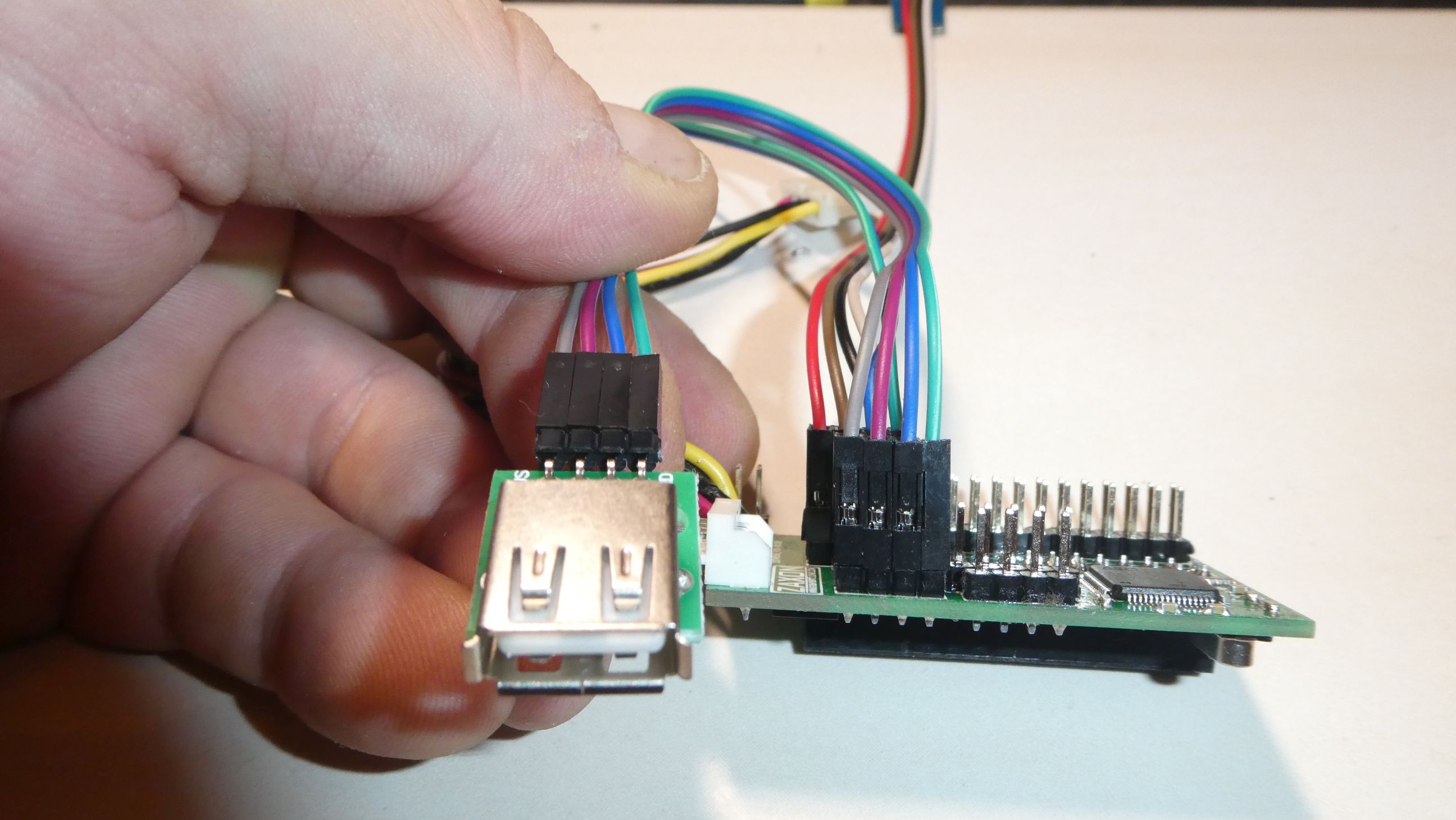

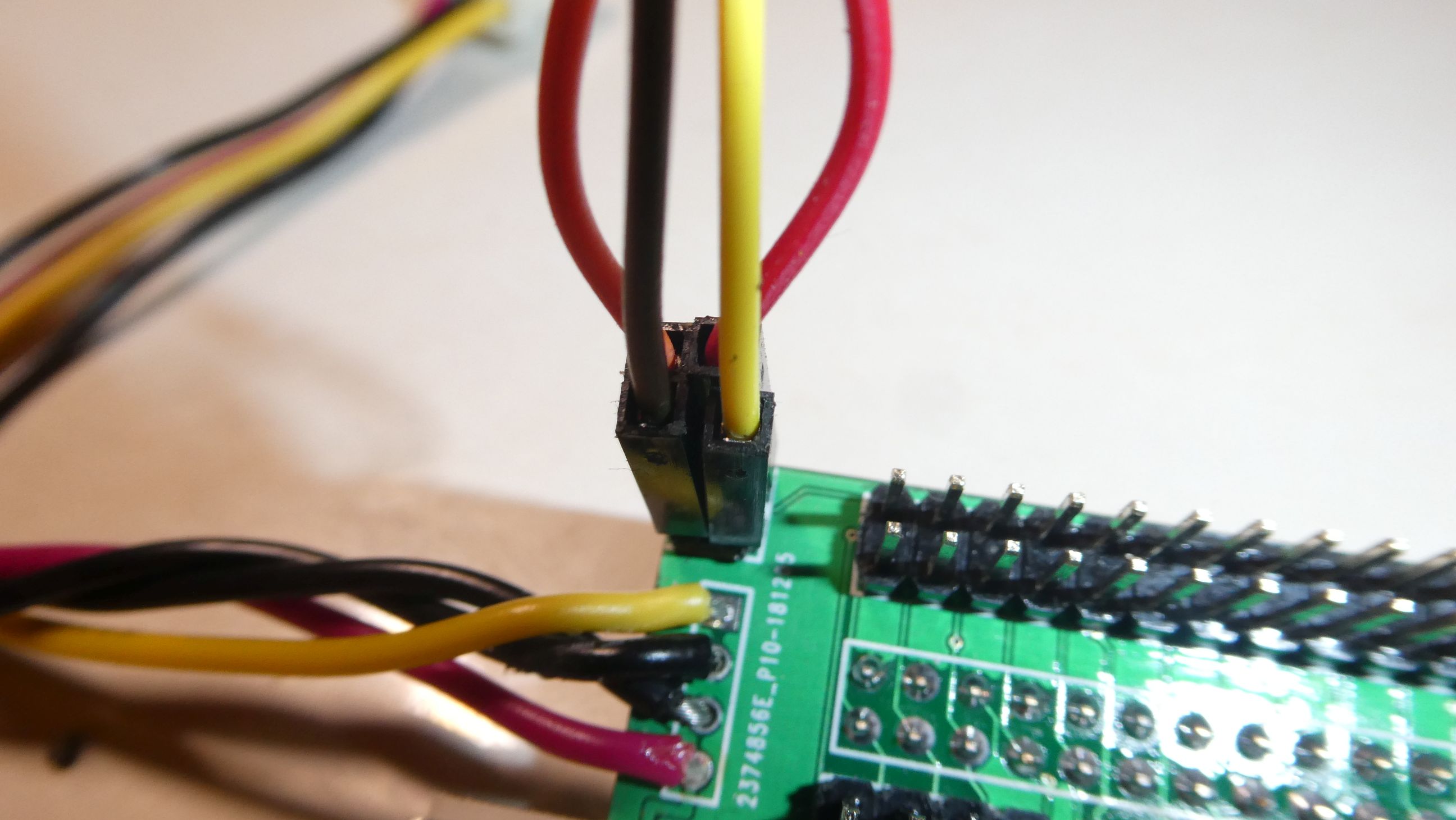

USB socket, double check,wrong connection can burn pendrive

1 (2553 kB)

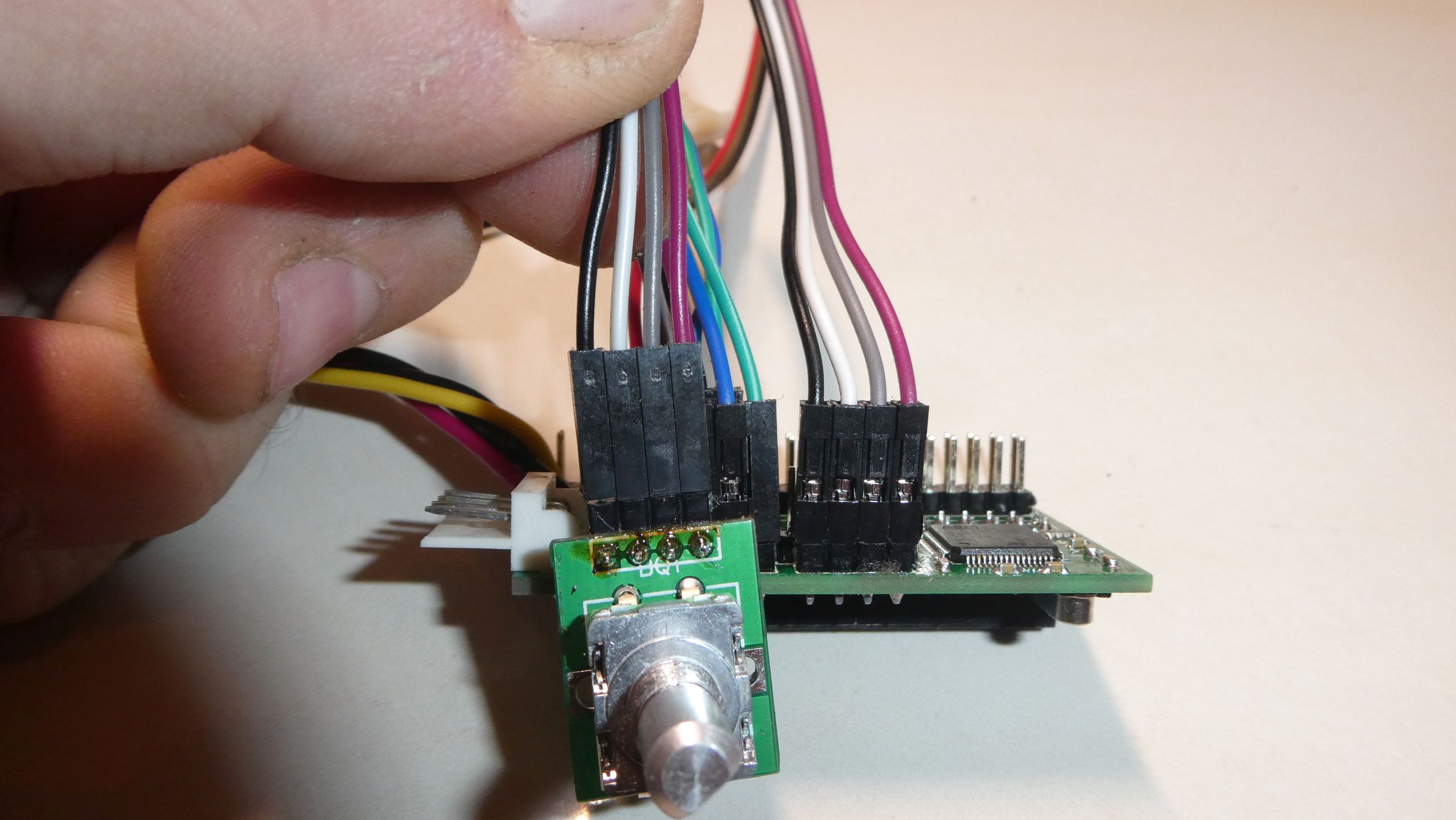

Encoder:

1 (2553 kB)
Drive select switch

1 (2553 kB)
1 (2553 kB)

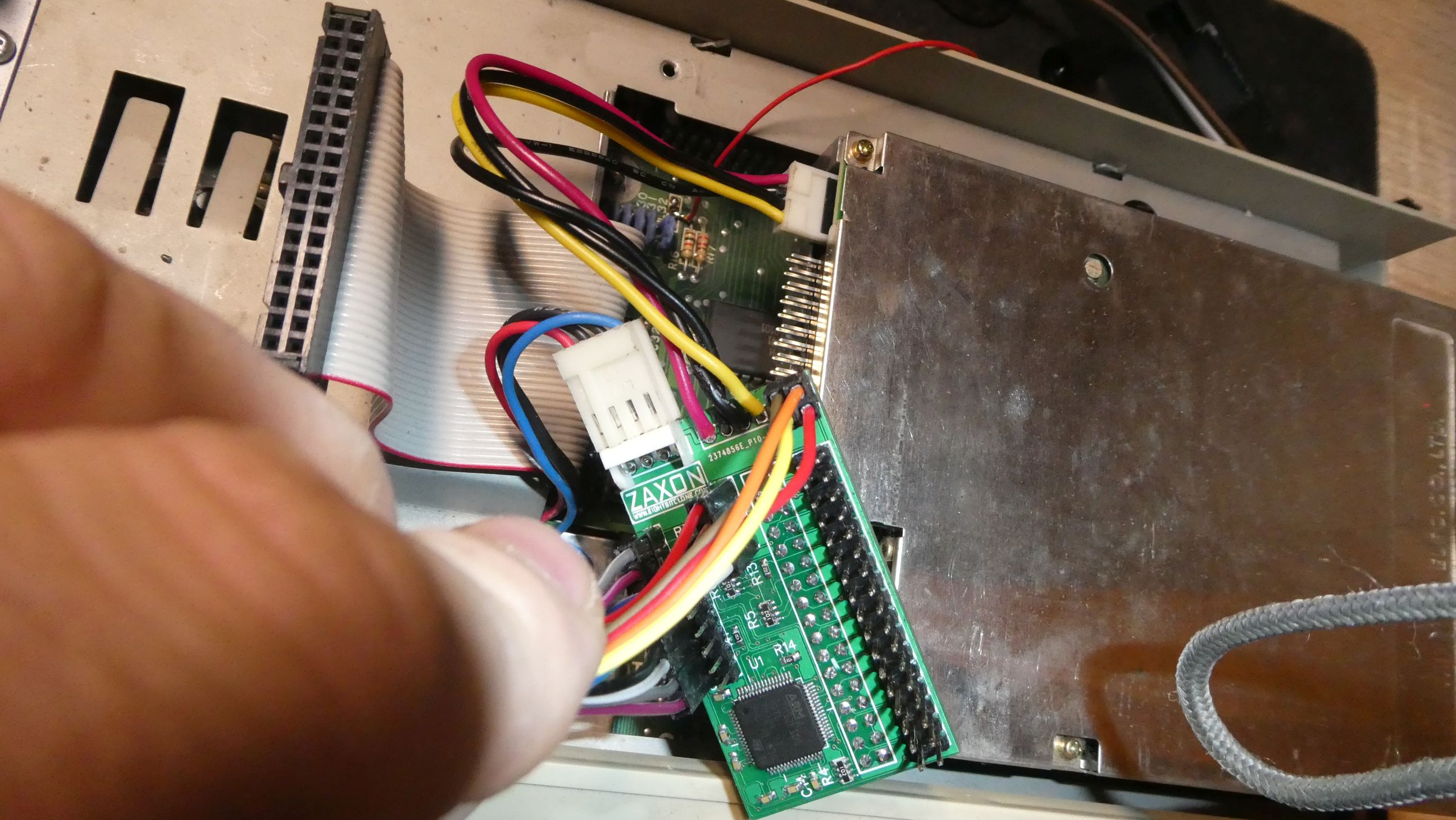

Installing in to STfm/STE
COnnect power supply from Microgotek board to floppy

1 (2553 kB)

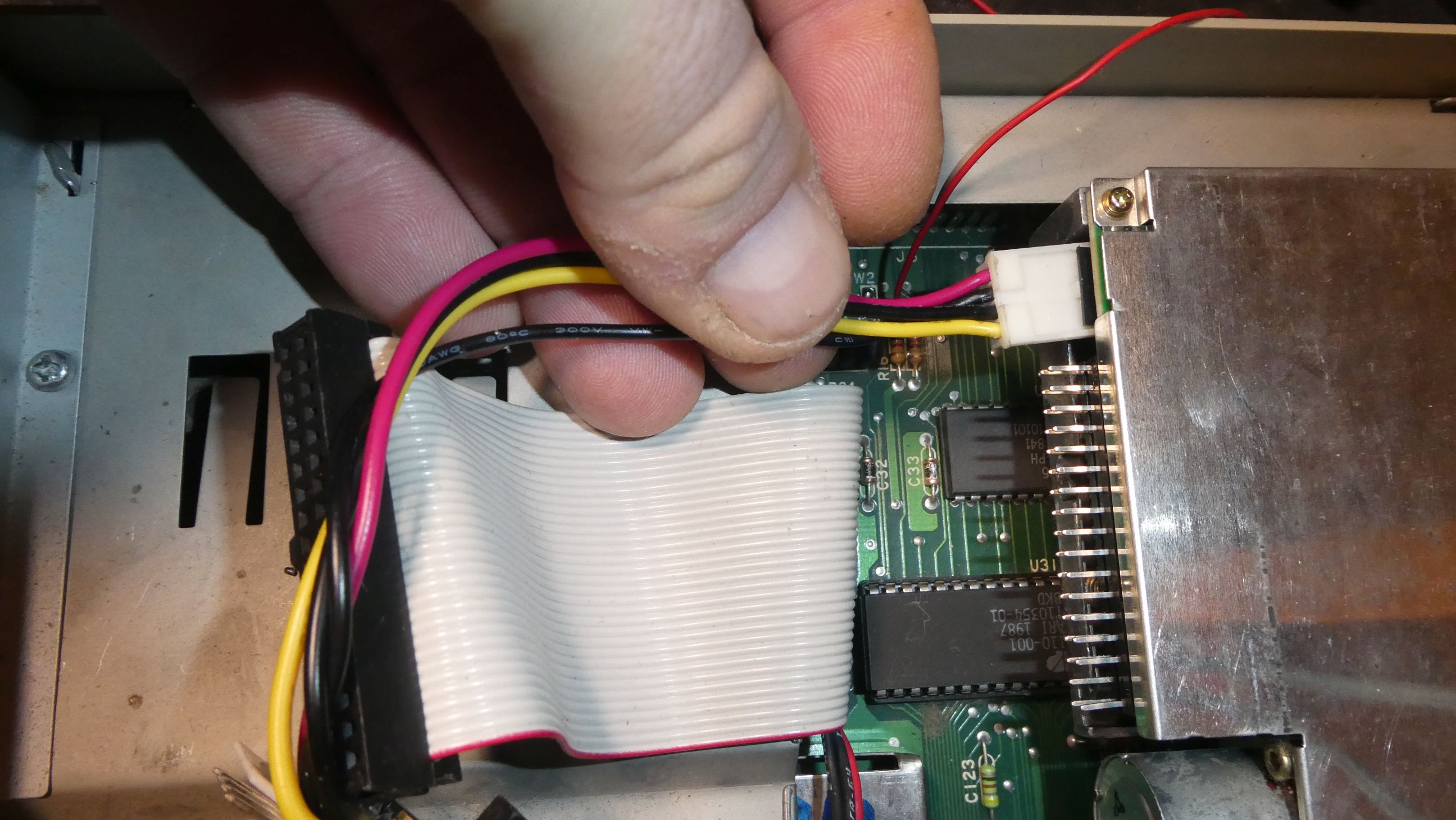

Connect power supply from atari board to microgotek
1 (2553 kB)

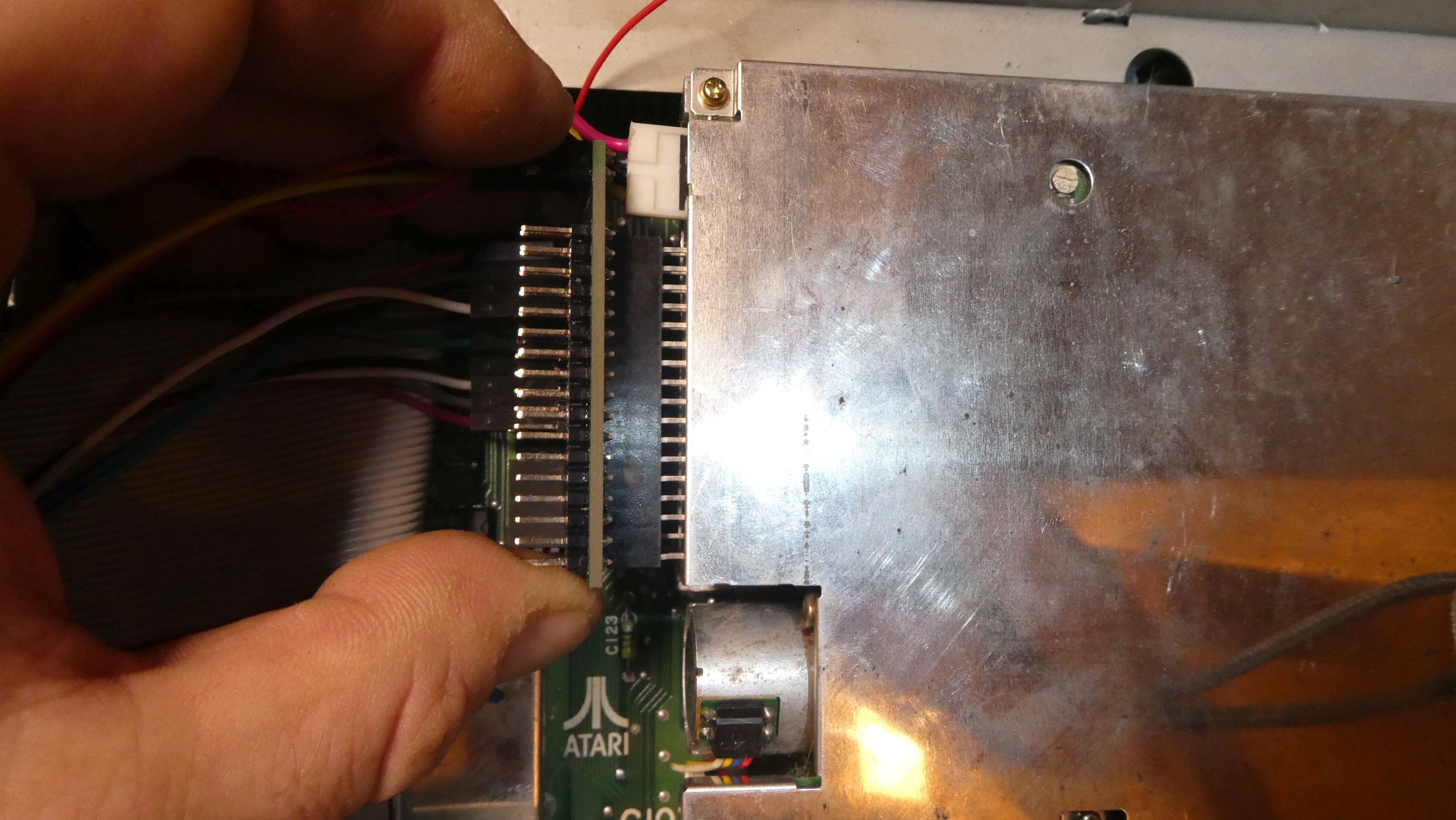

connect microgotek to floppy drive
1 (2553 kB)

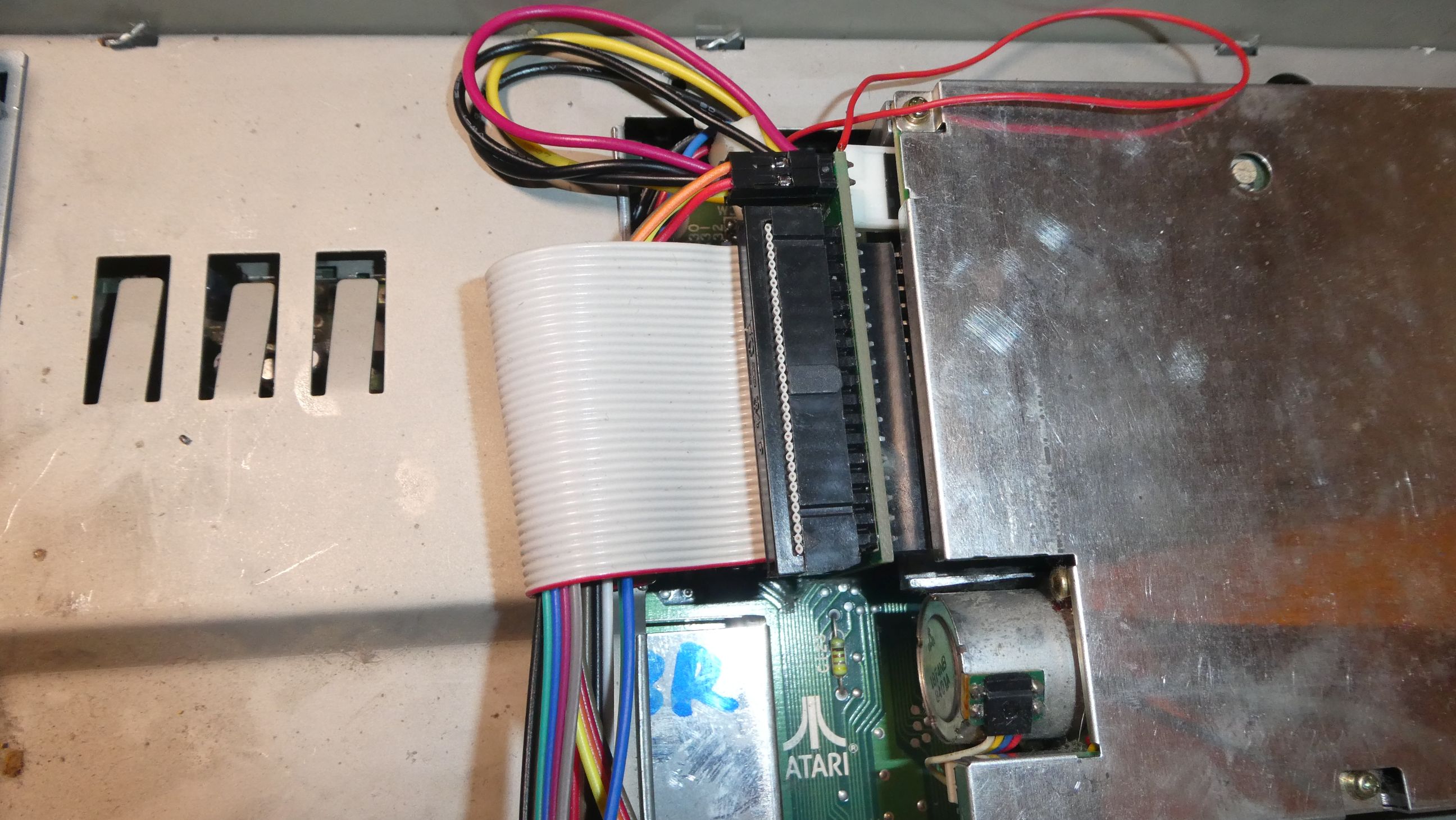

Connect ribbon cable to MicroGoteka
1 (2553 kB)

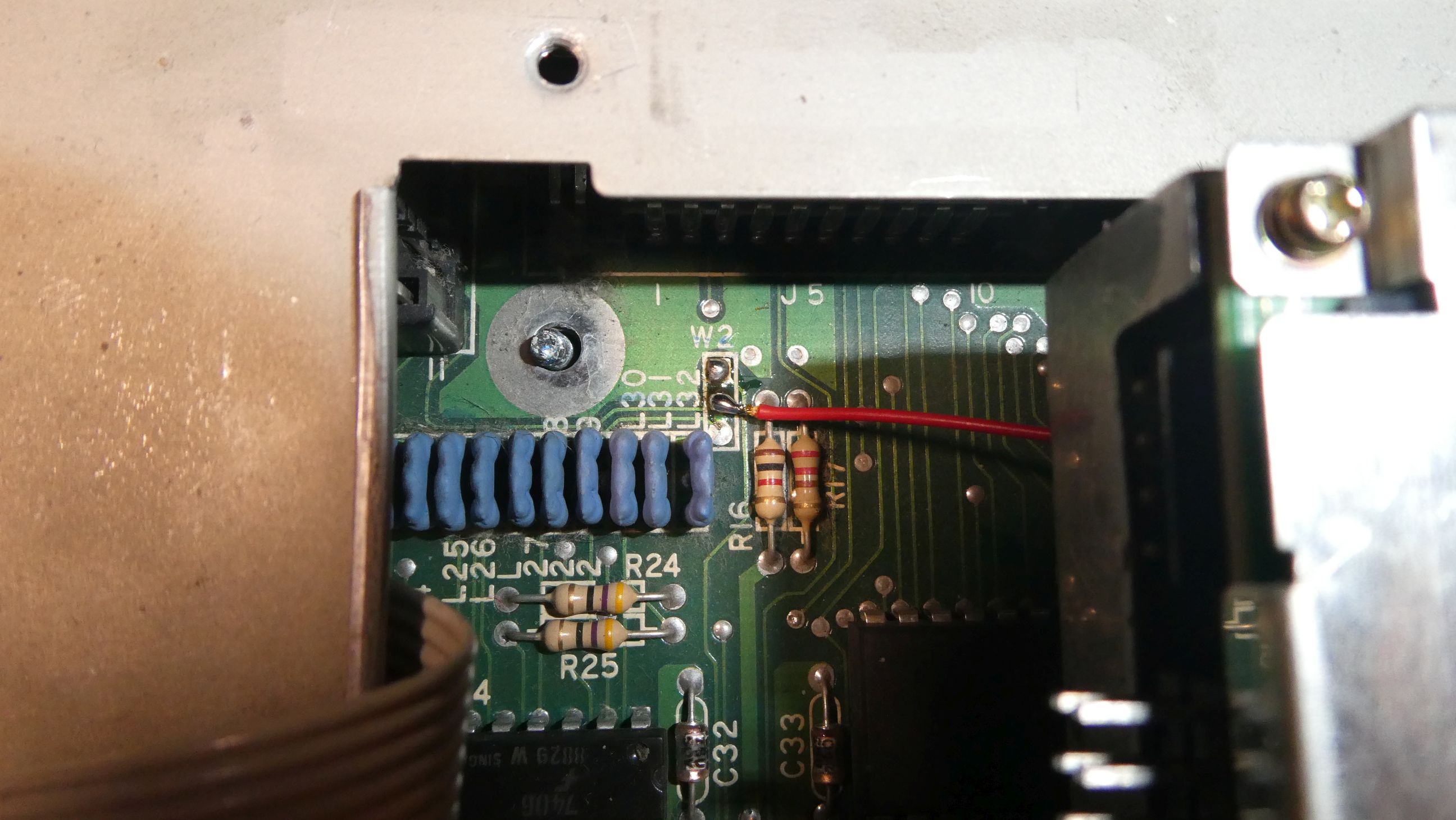

In STFM machines is wire link required from middle of W2 point on STFM board to ""brown cable" " square 4 pin on Microgotek board. 1 (2553 kB)

Check 3 times for short circuts, or disconected wires and power on Atari. Check drive A and B , .



.

Minimum config is only USB connected and in this case USB operate under ST manager software.
Board fit in to orginal drives mounted in Atari : SONY mp-f11w i Mitsumi D357T .
